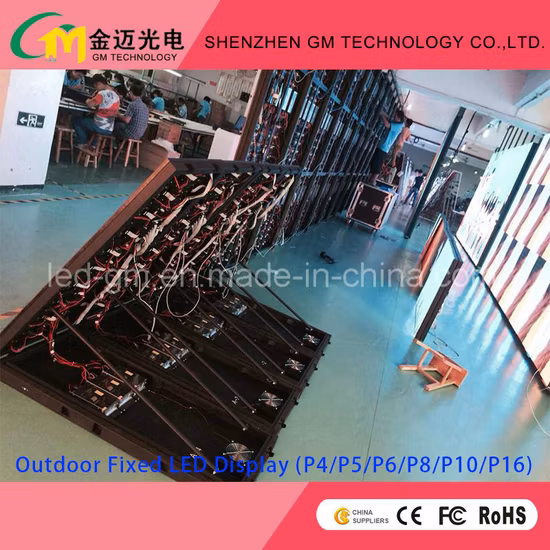

DIP/SMD HD P4/P5/P6/P8/P10/P16/P20 Outdoor LED Display/Screen /Board/Panel

DIP/SMD HD P4/P5/P6/P8/P10/P16/P20 Outdoor LED Display/Screen /Board/Panel

DIP/SMD HD P4/P5/P6/P8/P10/P16/P20 Outdoor LED Display/Screen /Board/panel Product Features:P10 Mainly for outdoor adver
Basic Info
Model NO. P10
Tube Chip Color Full Color
IP Rating IP65
Pixel Pitch 10mm
Pixel Configuration 1R, 1G, 1B
Display Function Video Display
Average Power Consumption 180W / m²
Pixel Density 10000 dot / m²
Scanning Mode 1/4 Scan
Display Type LED Video Display
Application Advertising
Certification CE, RoHS, CCC
Cabinet Material Iron
Best View Distance 10~150m
LED Chip Spec ["DIP346","DIP347"]
Shipment Terms by Sea or by Air
Transport Package Wooden Case
Specification 960mm*960mm*120mm
Trademark GM
Origin Shenzhen
Product Description
DIP/SMD HD P4/P5/P6/P8/P10/P16/P20 Outdoor LED Display/Screen /Board/panel
Product Features:P10
Mainly for outdoor advertising, information publishing, journalism and communication in some places, such as cultural square, traffic arteries, stations, terminals, information centers, entertainment venues, shopping, centers, commercial city and etc.
1. High brightness DIP LED is used for outdoor led display, keeps the display content visible even if facing the strong sunshine directly.
2. With Anti-UV ray mask, the color of the mask would never change even if under exposure of UV ray.
3. Weatherproof design, completely outdoor use.
4. Easy for assembling and connection with the connector added.
5. High color uniformity and clear image can bring you a vivid audio visual effect.
6. Both front and rear access are available.
7. The LED Chips that we use have the advantages of large viewing angle, low power consumption and good color uniformity.
8. Use the same level of red, green and blue led chips, which makes the image display of whole led display more excellent and uniform.
9. The maintenance of pixel and single led has been realized.
10. Good quality raw material, accurate technique and careful inspection insures the high quality of led display.
11. Relatively low cost (factory)
12. Stable capability
13. High brightness, high definition of displaying image.
14. Easy installment and low maintenance cost
15. Cabinet size double fan design, speed up internal air circulation, auxiliary heat make the screen more stable and reliable.

Application Case:Widely used for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, indoor stadium, and a variety of public facilities and etc.

DIP/SMD HD P4/P5/P6/P8/P10/P16/P20 Outdoor LED Display/Screen /Board/Panel

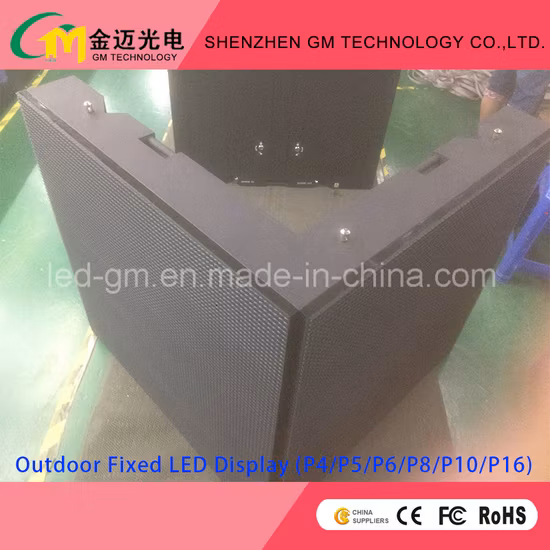

Product ModelOutdoor Fixed F10Outdoor Fixed F16Outdoor Fixed F20
Pixel Pitch10 mm16 mm20 mm
Module Size160x160 mm256x256 mm320x160 mm
Module Resolution16x16 pixels16x16 pixels16x8 pixels

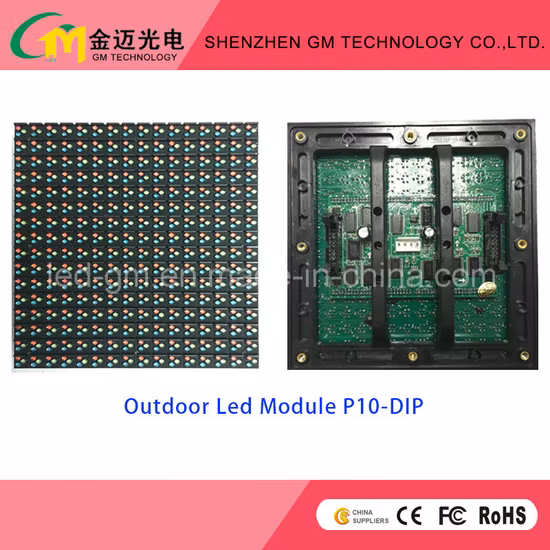

LEDDIP 346DIP 346DIP 346
Standard Cabinet Size960x960 mm1024x1024 mm1280x1280 mm
Standard Cabinet Resolution96x96 pixels64x64 pixels64x64 pixels
Standard CabinetIronIronIron
Physical Density10000 Pixels/m23906 Pixels/m22500 Pixels/m2
White Balance Luminance≥7500 nits≥8000 nits≥7000 nits
Gray Scale per Color16384 level16384 level16384 level
Contrast1000:11000:11000:1
Refresh Frequency≥1920 Hz≥3200 Hz≥3200 Hz
Visual Angle(Horizontal/Vertical)120°/50°120°/50°120°/50°
Max Power650 W/m2900 W/m21200 W/m2
Average Power200 W/m2300 W/m2400 W/m2
Input Voltage(AC)110 V -240 V110 V -240 V110 V -240 V
Working Environment Temperature-20ºC~50ºC-20ºC~50ºC-20ºC~50ºC
Operating Humidity10%RH~95%RH10%RH~95%RH10%RH~95%RH
Control SystemAV,Video,VGA,DVI,HDMI,SDI,DPAV,Video,VGA,DVI,HDMI,SDI,DPAV,Video,VGA,DVI,HDMI,SDI,DP
Product ModelOutdoor Fixed F10-SOutdoor Fixed F8-SOutdoor Fixed F6-S
Pixel Pitch10 mm8 mm6 mm
Module Size320x160 mm256x128 mm192x192 mm
Module Resolution32x16 pixels32x16 pixels32x32 pixels

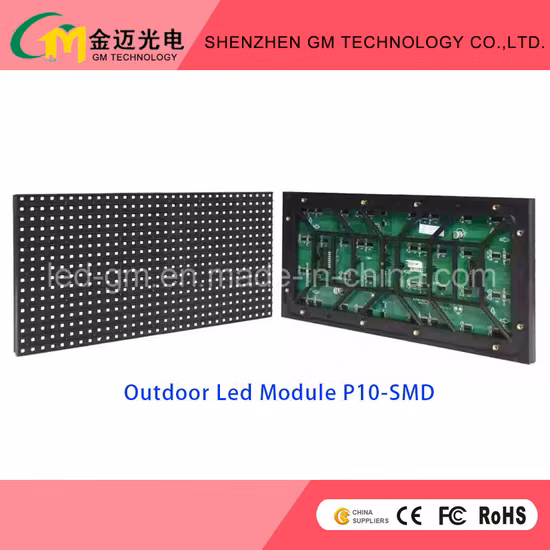

LEDSMD3535SMD3535SMD3535 or SMD2727
Standard Cabinet Size960x960 mm1024x1024 mm768x768 mm
Standard Cabinet Resolution96x96 pixels128x128 pixels128x128 pixels
Standard CabinetIronIronIron
Physical Density10000 Pixels/m215625 Pixels/m227777 Pixels/m2
White Balance Luminance≥6500 nits≥7000 nits≥6000 nits
Gray Scale per Color16384 level16384 level16384 level
Contrast1000:11000:11000:1
Refresh Frequency≥1920 Hz≥1920Hz≥1920 Hz
Visual Angle(Horizontal/Vertical)140°/140°140°/140°140°/140°
Max Power650 W/m2750 W/m21000 W/m2
Average Power200 W/m2250 W/m2350 W/m2
Input Voltage(AC)110 V -240 V110 V -240 V110 V -240 V
Working Environment Temperature-20ºC~50ºC-20ºC~50ºC-20ºC~50ºC
Operating Humidity10%RH~95%RH10%RH~95%RH10%RH~95%RH
Control SystemAV,Video,VGA,DVI,HDMI,SDI,DPAV,Video,VGA,DVI,HDMI,SDI,DPAV,Video,VGA,DVI,HDMI,SDI,DP

Other products:Indoor fixed LED screen: P2.5, P3, P4, P5, P6, P8, P10Indoor rental LED screen: P3, P3.9, P4, P4.8, P5, P6Outdoor fixed LED screen: P5, P6, P8, P10Outdoor rental LED screen: P3.9, P4.8, P5, P6, P6.25, P8, P10Small pitch LED screen: P1.6, P1.9Front service maintenance LED screen: P6.67, P8, P10Stadium perimeter LED screen: P8, P10LED poster player: P2.5,P3, P4, P5, P6, P8, P10

DIP/SMD HD P4/P5/P6/P8/P10/P16/P20 Outdoor LED Display/Screen /Board/Panel


Services:

1.Your inquiry related to our products or price will be replied in 12hrs.

2.OEM&ODM,any your customized lightings we can help you to design and put into product.

3.Distributoership are offered for your unique design and some our current models.

4.Protection of your sales area,ideas of design and all your private information.

5.Best cost performance and perfect service before and after sales.

DIP/SMD HD P4/P5/P6/P8/P10/P16/P20 Outdoor LED Display/Screen /Board/Panel



Why GM LED Display

1. Competitive Price
We are middle-sized Chinese local factory, maybe you can see that from our so Chinese name of "(GM) Meaning:Manufacturing golden quality , Towards the world ", unlike the internationalized name of foreign trade company. Besides, we control our cost very well and don't have huge management cost like top companies, so that we can give the real benefits to our customers.

2.Close Relationships with Raw Material Providers
For our bosses have been in the key positions at the top led display factory since 2006, we havevery close and strategic relationship with the raw material providers, which support the stable quality of our products.

3. Quality Control
From raw materials to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability.

4. Professional services
We have 5-6 in the LED display industry more than 12 years of professional and technical personnel, hope to be able to better provide customers with the best solution. Let customers use the rest assured.

DIP/SMD HD P4/P5/P6/P8/P10/P16/P20 Outdoor LED Display/Screen /Board/Panel


Company profile
GM Technology GM Meaning: "Manufacturing golden quality, Towards the world "GM Technology , established in 2006, is a high-tech professional supplier which focusing on development and production of LED screen and LED lighting products. With integrated demand analysis, product design, manufacturing, marketing and service, GM Technology has been striving in providing Excellent-quality and Great-performance LED screen products and solutions for their customers all these years. Now, after decades of developing and manufacturing experience in the LED screen industry, GM Technology has become one of the leading LED screen turnkey solution provider in the whole world. Dedicating to LED screen development, GM Technology has built a modernized R&D laboratory and production workshop, equipped with a set of world-class facilities, achieved a fully automatic process of plug-in, glue-irrigating, assembly and aging testing; Possessed a team who are quite skillful and gain rich practical operation experience in industry. As a leader in LED screen field, GM Technology launched two or three new products every year to meet the customer's changing requirements, with our innovative competitive new solutions, we help our customers realize the value easily. GM Technology products have passed all kinds of national and international testing and certificates, including safety testing, windage testing, waterproof testing, dimming testing, EMC testing, heavy metal content testing, and high/low-temperature testing which conducted by official authorized institutions, and obtained CE, UL, FCC, ETL, CCC, RoHS certification, meanwhile we also attained the ISO9001: 2000 quality management system. Over the years, GM Technology never ceases its pace in pursuit of more reasonable humanized design and perfect solid quality, as we always believe that quality is the cornerstone for the survival and development of an enterprise. With ten years of dedicated, professional, and rich practical operation experience, GM Technology develop all kinds of solutions for the LED screen market, such as advertising LED screen solutions, sports LED screen solutions, stage LED screen solutions, rental LED screen solutions and so on. Nowadays, GM Technology products are being sold to more than 30 countries and numerous regions including China, West Europe, South Europe, Middle East, Southeast Asia, North America, South America, Australia, Africa and so on. Ten years since the establishment of our company, our customers accompanied and witnessed the growth we made together, what is more, the quality and performance of GM Technology products has been tested by market well enough, thanks to the timely honest feedback which was sent by our adorable professional channel customers and terminal customers. Along with the green and energy saving revolution of the 21st century, GM Technology responds the appeal actively and determines to make as much contribution as they could for the harmonious environment. Next, GM Technology will double its effort in technology innovation, devote himself to become a demonstration base among the whole LED screen industry. We are looking forward to the soon coming of that day!

DIP/SMD HD P4/P5/P6/P8/P10/P16/P20 Outdoor LED Display/Screen /Board/Panel


Packing>>>
For iron cabinet led display screen of indoor or outdoor,we usually use wooden case to packing
For aluminum cabinet of led rental stage display,we usuallu use flight case to packing
One wooden case including 2 cabinets,one flight case including 6 cabinets
Shippment>>>
By air or sea,FOB shenzhen
UPS/DHL/Fedex/Express(door to door)and so on
Delivery time>>>
within 20 days counting from 30% prepayment arrived at GM account.
Payment term>>>
T/T(30% deposit,the remained 70% payment made before factory shipment )
Western union/paypal/L/C and so on
Quality assurance>>>
We offer 5 years warranty,and our products have passd CE,RoHS,FCC certificate ,All products have Age testing,shaking testing,waterproof testing,In generally,Module test is 24h,entire screen test is 72h,A series of testing before delivery can ensure transportation and quality products.


FAQ
1:What is the warranty of your led display?
A:We offer 6 years warranty.and more than 100000 hours screen life span

2:what is your payment term?How long it takes to delivery?
A:We usually accapt the T/T or L/C.both of them will at least 30% deposit in advance,and the rest of 70% will paid before delivery.The lead time is usually 20 day

3:How can you ensure the led display product quality?
A:Before shippment,all the screens have aging test.and then we also have waterproof test and shake test,ensure products can transportation safety and normal use.

4:What is your pre-sale and post-sale service?
A:For pre-sale service,we have professional sales team and technical team,who are willing to answer your question within 24 hours.
For post-sale service,we will instruct you how toinstallation,how to use,how to change the broken moudles,and we can also send the technicals to your country,in general,our led display will not have a big problem,you can rest assured to buy.



Currently, GM Technology LED display is already exported to Asia, Europe, South America, North America, Africa and Middle East and other regions.For more details, please feel free to contact us. We will give you best service and timely reply.




We are looking forward to your visiting ! We are looking forward to your visiting ! We are looking forward to your visiting !
