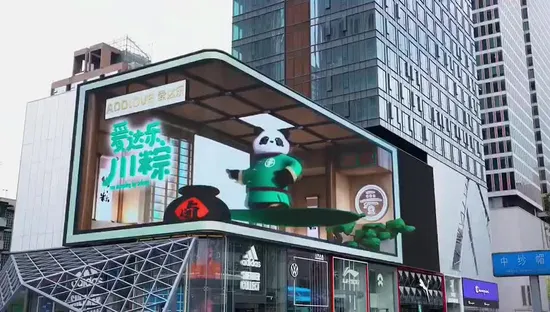

High Brightness P4mm Outdoor Fixed HD Large LED Screen Display

Basic Info

Model NO.	F1
Tube Chip Color	Full Color
IP Rating	IP65
Pixel Pitch	4mm
Pixel Configuration	1R, 1G, 1B
Display Function	Video Display, Image & Text Display, Text Display, Market Display
Average Power Consumption	260W/Sqm
Pixel Density	62500dots/M2
Scanning Mode	1/10 Scan
Display Type	LED Video Display
Application	Advertising
Certification	CE, RoHS, CCC, ETL, FCC
Module Size	320*160mm
LED Lamp Type	S1921
Scan Frequency	10s
Screen Brightness	6000nits
Cabinet Size(mm)	960*960
Cabinet Material	Steel Iron
Working Temperature	-30c~70c
Life Span(H)	100,000
Input Voltage(V)	AC 100~240V
Frame Rate	60Hz
Control Method	Sync/Async/4G/WiFi
Certificate	CCC/RoHS / CE / FCC/ ETL
Controller	Nova/ Linsn/Colorlight
LED Configuration	1r1g1b
Working Humidity	10 - 90% Rh
Transport Package	Wooden Case
Specification	320*160mm
Trademark	CKGLED
Origin	Shenzhen, China
HS Code	8528591090
Production Capacity	6000sqm/Month

Product Description

Product Description:
F1 series features:

a.Rear service design. b.Wide range viewing angle/great uniformity , contract ratio and screen flatness. c.Anti-UV module mask, Anti-Oxidation module frame with protection from deformation. d.Energy-saving 29% by using high efficiency IC driver, high brightness leds and improved PCB.

e.IP65 protection grade, durable nature enables the screen to work in all outdoor weather conditions.

NO.	Item	Parameters
1	Model	F1
2	Pixel Pitch(mm)	4
3	LED Configuration	1R1G1B
4	LED Type	SMD1921
5	Screen Resolution	62500dots/sqm
6	Module size(mm)	320X160
7	Cabinet size(mm)	960*960
8	Cabinet material	Steel Iron
9	Brightness(cd/sqm)	≥6000
10	Viewing angle	H:140°/ V:140°
11	Grey Scale	14~16bit
12	Refresh rate(Hz)	1920~3840
13	Ave. power consumption (W/sqm)	260
14	Max. power consumption(W/sqm)	750
15	IP grade	IP65
16	controller	Novastar / Linsn/Colorlight
17	Maintenance	Rear service
18	Color(T)	>4.4
19	Input Voltage(V)	AC 110V-220V +/-10%
20	Frame frequency(Hz)	60
21	Working humidity	10~90%RH
22	Working temperature	-30ºC~70ºC
23	Certificates	RoHS / CE / CCC/ETL/FCC

PRODUCT PHOTOS:



Company Introduction: CKGLED is a professional full color led display manufacturer in Shenzhen,China, with two production bases covering over 10,000sqm and more than 200 employees. Our products ranks are indoor outdoor full color led displays for permanent installation and rental events,etc.
All our products are certified with CE,RoHs,FCC,CCC,ETL,etc. Our factory is approved by ISO9001:2015/2008 quality and management system. Moreover, we provide solution, technical support and perfect after-sales service with two years' arranty policy.
FAQ: Q1: How are these LED display controlled?
RE: The led display will be controlled via a software. Before delivery, our engineer will very well program &setting the screen and safe the setting in the display and the end users could have an turn-key led display.

Q2: What the software your company uses for your product?
RE: We mainly use Novastar / Colorlight and Linsn.

Q3: What about the lead time ?
RE: Our regular production time is 15-20normal days against advance payment, for huge quantity, please check with our sales manager.

Q4: Do you have any MOQ limit for Led display order ?
RE: Module sample is accepted in our company, so we don't have MOQ request for led displays.

Q5: What is the warranty for your led display?
Re: The standard warranty is 2years, while it is possible to extend the max. warranty to 5years with extra cost.

Q6:What after service can provide?
Re: We have professional engineers providing?24h online technical support and by email; We also send technical personnel to the scene in customers significant activities.

Q7: How to be our distributor?
Re: Please check with our sales manager for details.

Q8:How to maintenance led screen?
Re: In usually every year to maintenance led screen one time, clear the led mask, checking the cables connection, if any led screen modules fail, you can replace it with our spare modules

Q9: What if I don't know how to install the screen?
a. We will provide your details drawing for installation led screen, But you need provide us on-site picture for installation place.
b. We provide training 2 people in the factory for free.
c. We can send our engineers to your country to guide how to install the screen.

Q10. What if I don't know how to maintain the screen?
We will provide you with operation manuals and software when you place an order, and we can help you debug remotely.
